 PalynologyAs noted in the proposal,
        projects of this nature often lead to additional research. Although palynology
        was not part of the original proposal, Dr. Orson was able to obtain two
        students from Yale to conduct a preliminary palynological investigation
        into the top 80 cm of peat. The results of that investigation are shown
        in Figs 10 - 12. Figure 10 is a view of the percent pollen recovered from
        a core in the unrestricted site and Fig. 11 is the material recovered
        from the peat overlying the trolley fill. Fig 12 is a composit view of
        the comparisons between all arboreal and non-arboreal pollen. The decline
        in arboreal pollen on Fig. 12 coincides with the increase in ragweed on
        Fig. 10 (Ambrosia sp.), suggesting that the colonial period at this site
        occurred at about 40 cm, a depth that corresponds with the settlement
        period noted at other sites in Connecticut (Orson et al 1998).

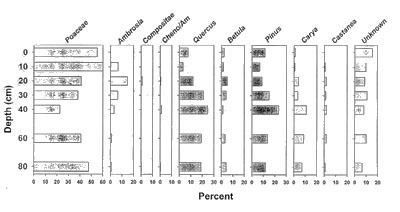

 Figure
        10 -From left to right. Poaceae, Ambrosia, Compositae,
        Cheno/Am, Quercus, Betula, Pinus, Carya, Castanea, Unknown.

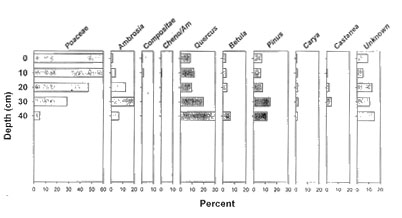

 Figure
        11
        - From left to right. Poaceae, Ambrosia, Compositae, Cheno/Am, Quercus,
        Betula, Pinus, Carya, Castanea, Unknown.

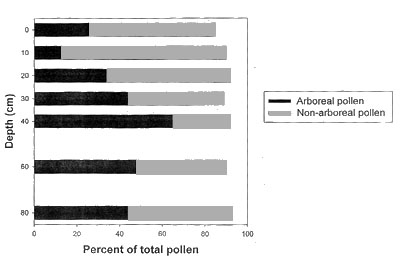

 Figure
        12
        - Percent of Total Pollen

   |
